Industrial Automation: Custom Electrical Control Panel Design for “Texas” Scalding Systems
Advanced Process Engineering
This project highlights our expertise in high-end engineering, specifically focusing on a robust pneumatic electric control system for food processing machinery. Designed for the “Texas” series nut scalder, this installation manages a throughput of 5,000 kg/h, balancing high-speed production with surgical thermal precision and automated fluid handling.
Strategic Control & IO-Link Integration

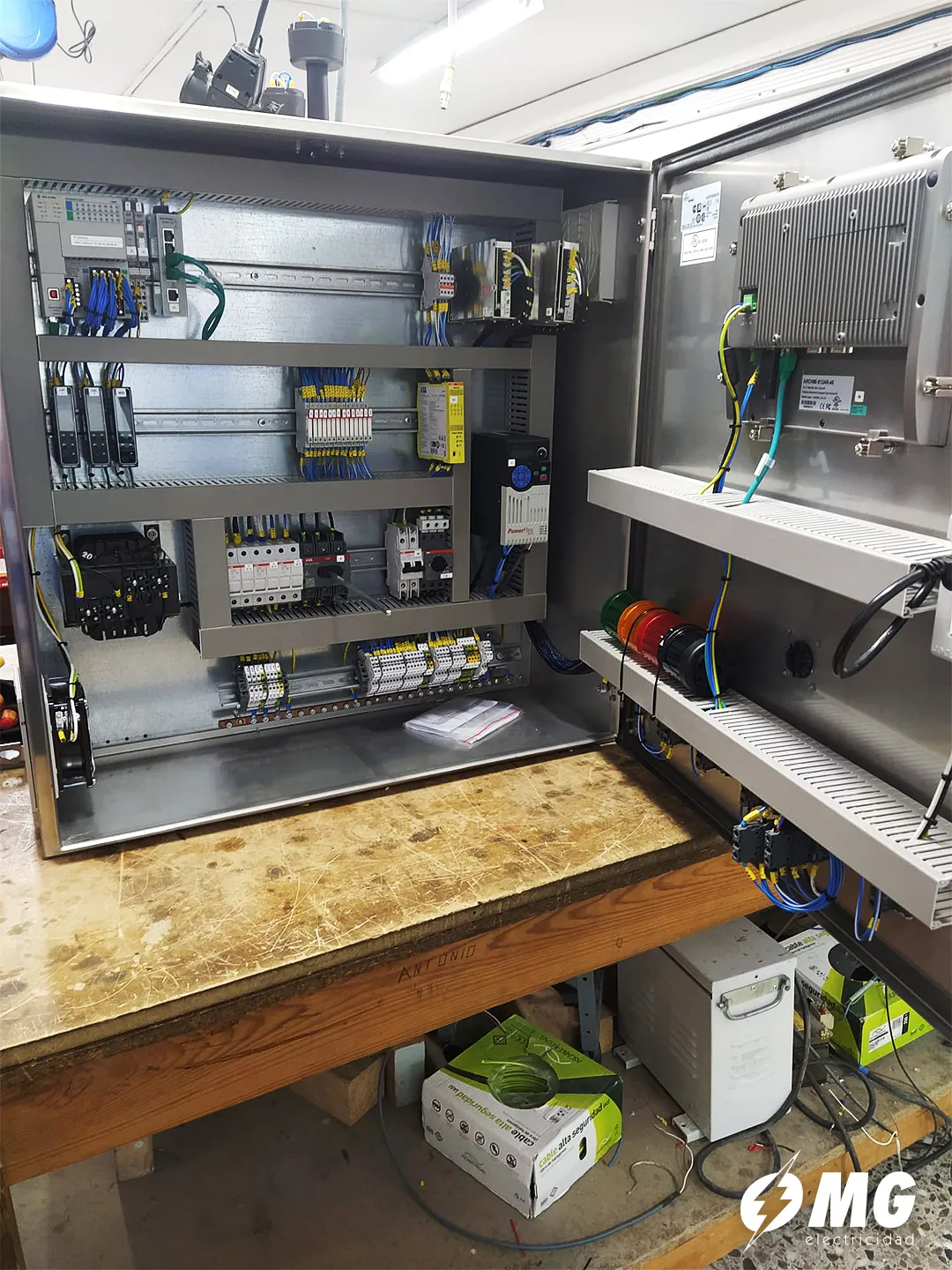

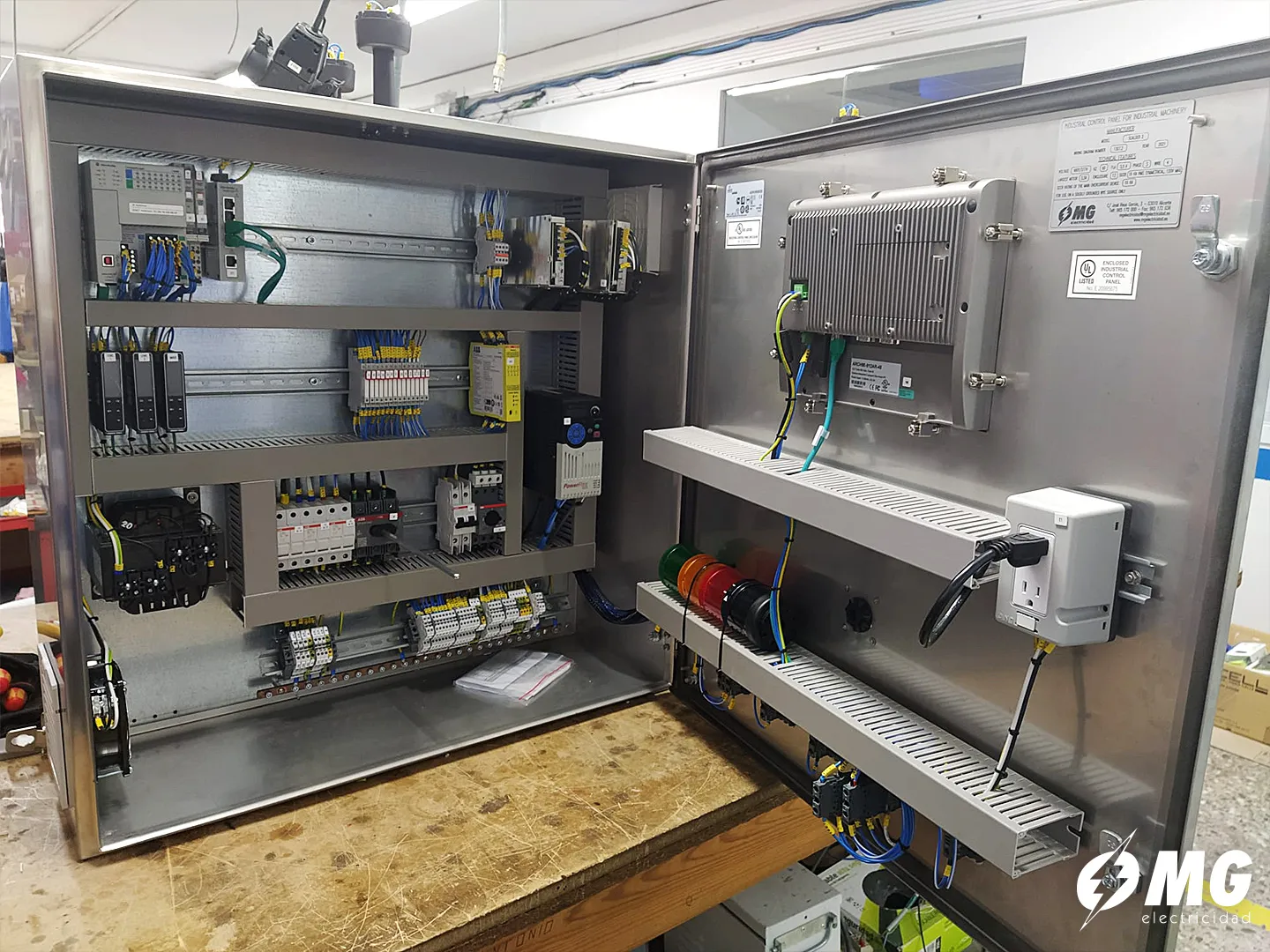

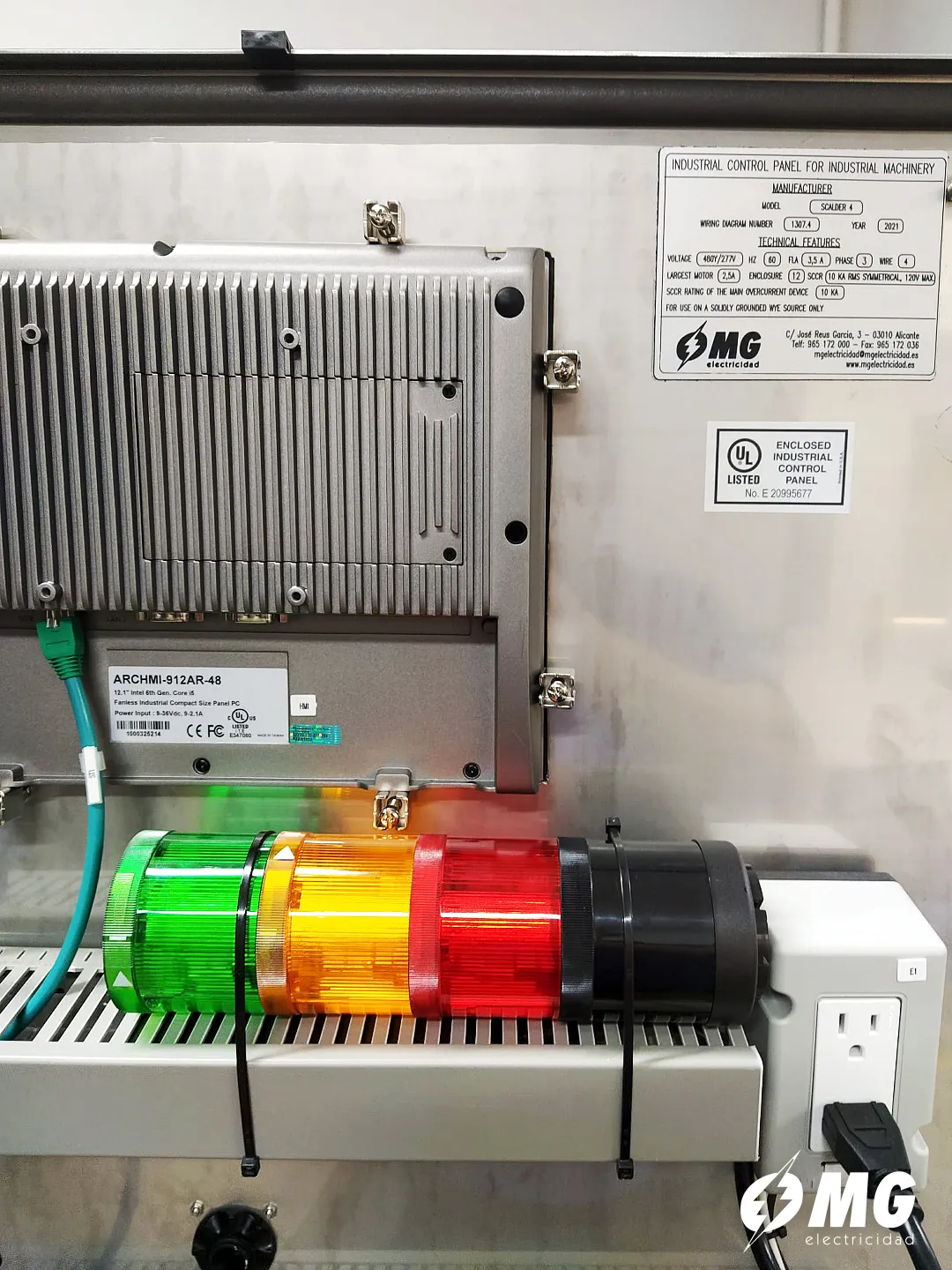

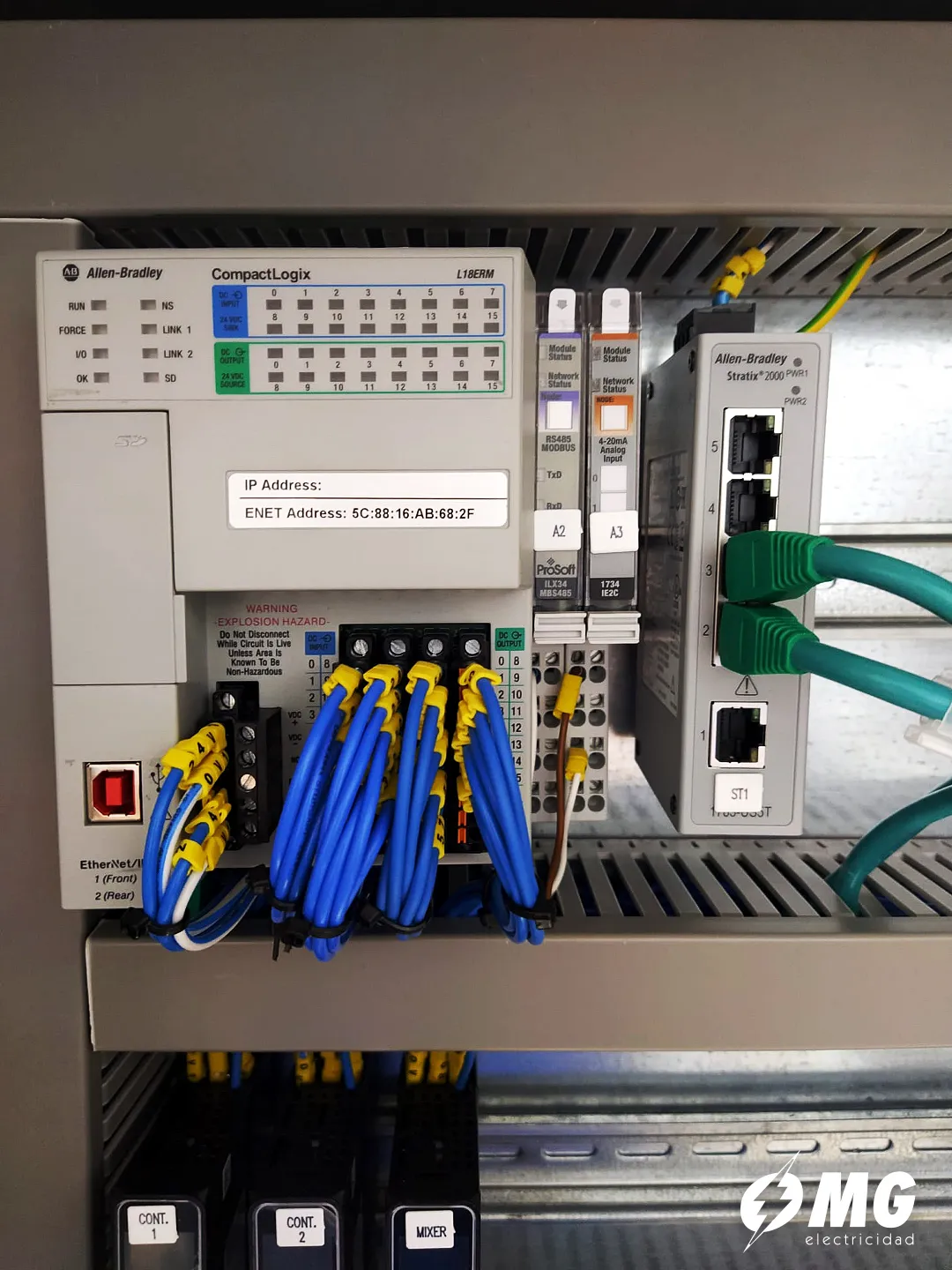

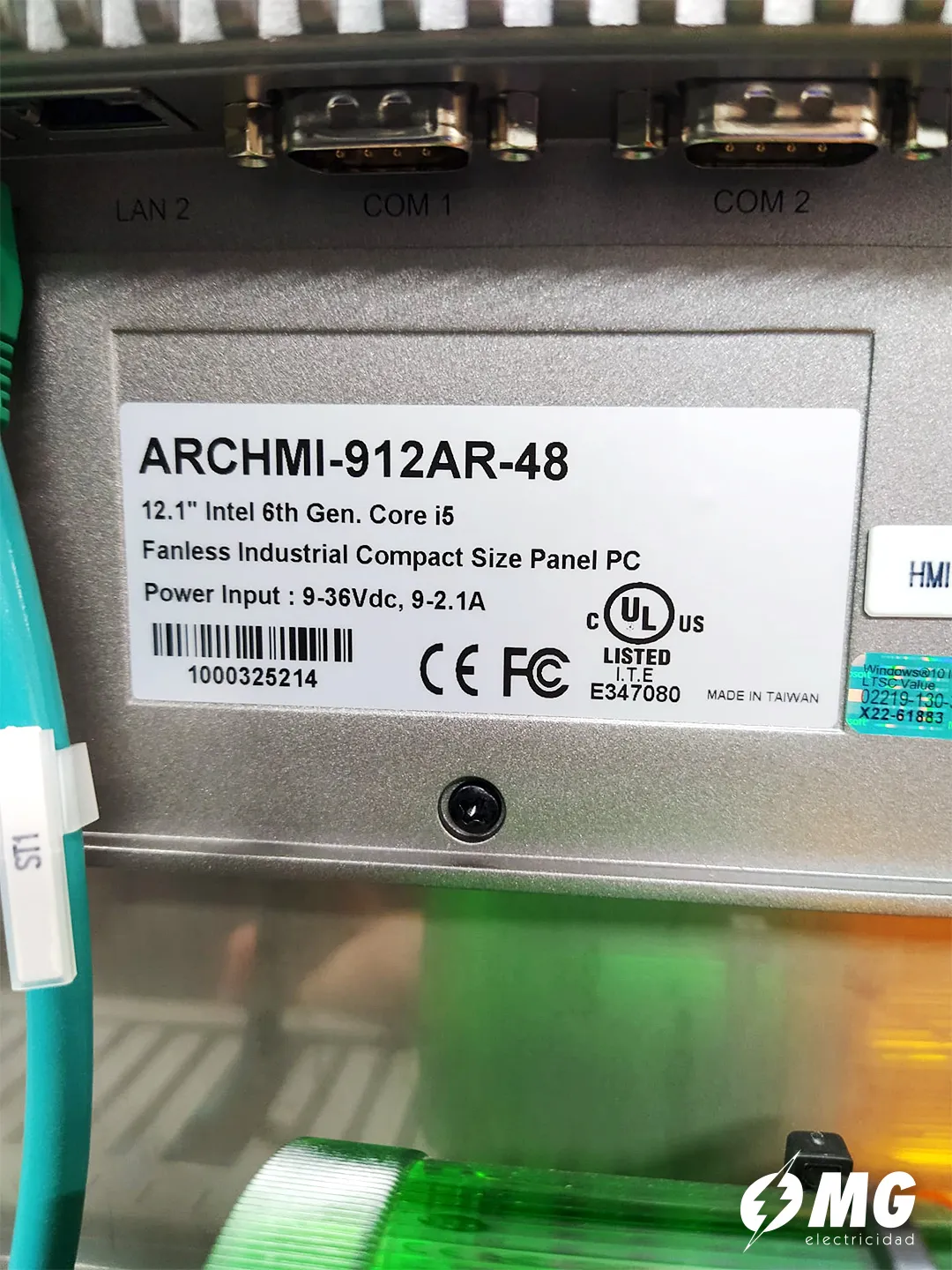

The core of our electrical control panel design is built on a high-reliability Siemens architecture, ensuring the pneumatic electric control system operates with maximum efficiency:
-
Logic & Drive Control: Integration of Siemens VFDs to regulate the 1.10 kW gear motor, synchronized via Encoder for perfect product transit timing.
-
IO-Link Sensor Integration: We implemented IO-Link technology for the PT-100 temperature probes and magnetic flowmeters. This allows for digital, noise-free data transmission and advanced diagnostics, essential for modern industrial controls.
-

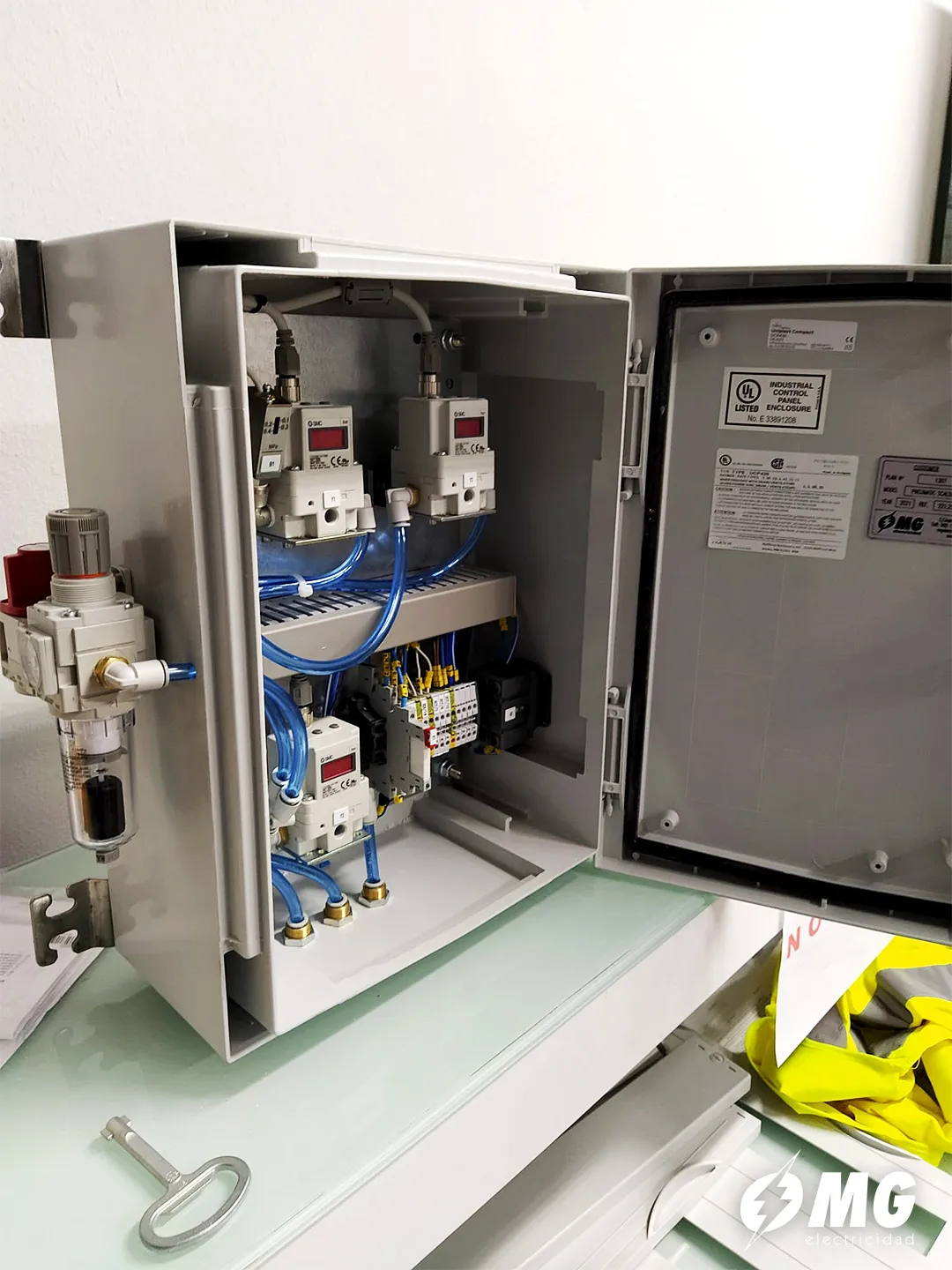

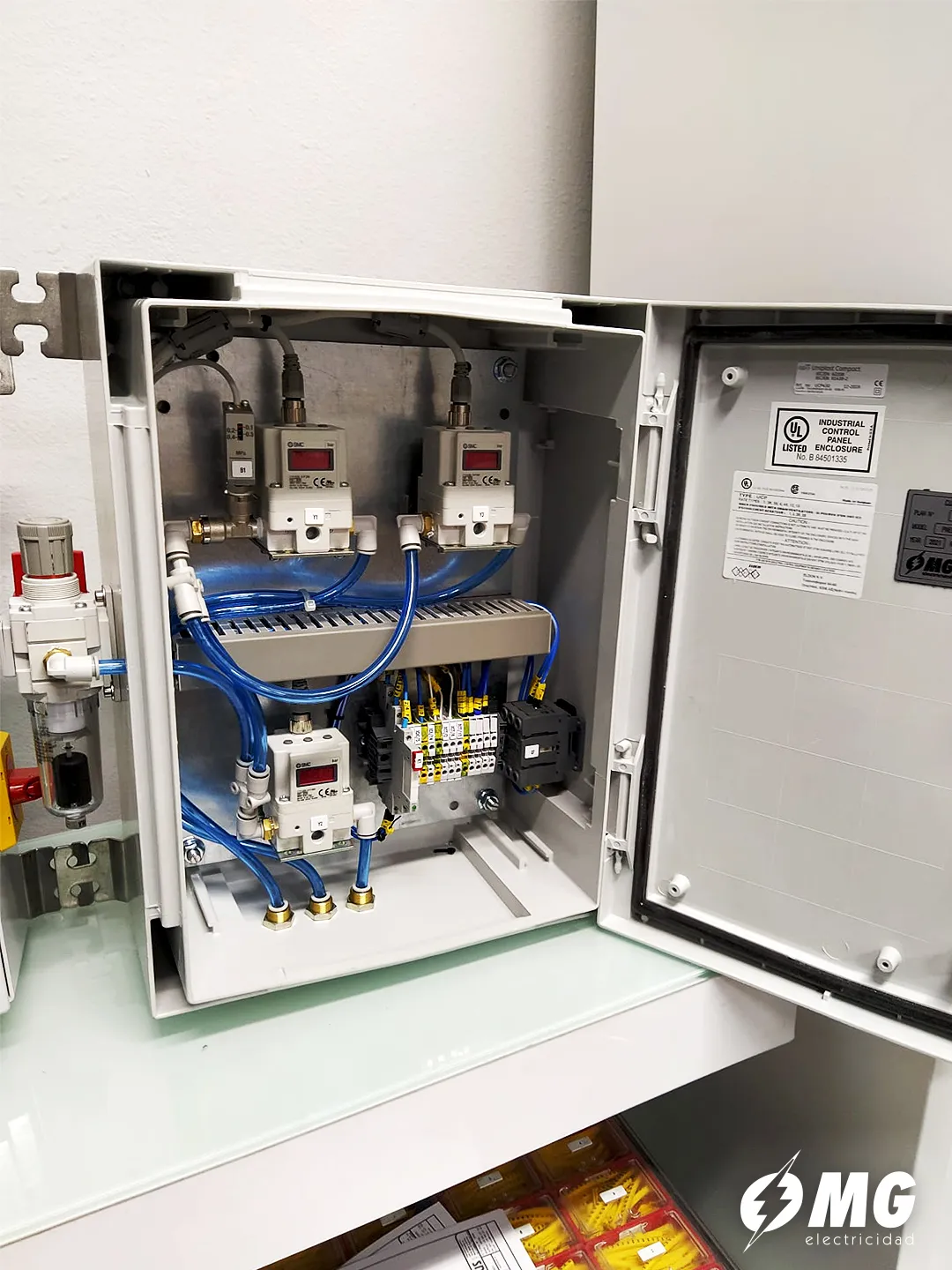

Electropneumatic Interface: The system manages a complex network of pneumatic valves and dual-coil cylinders that orchestrate the water flow, automated filling, and mechanical gates of the scalder.
Hygiene and Global Compliance
Designed for a “wash-down” environment, the installation adheres to the highest sanitary and safety standards:
-
Sanitary Infrastructure: All cabling is secured in stainless steel Rejiband trays to prevent organic accumulation and facilitate rigorous cleaning.
-
Automated CIP (Cleaning In Place): Bu pneumatic electric control system includes dedicated logic for automated cleaning cycles, managing internal spray balls and drainage to ensure food safety compliance.
-

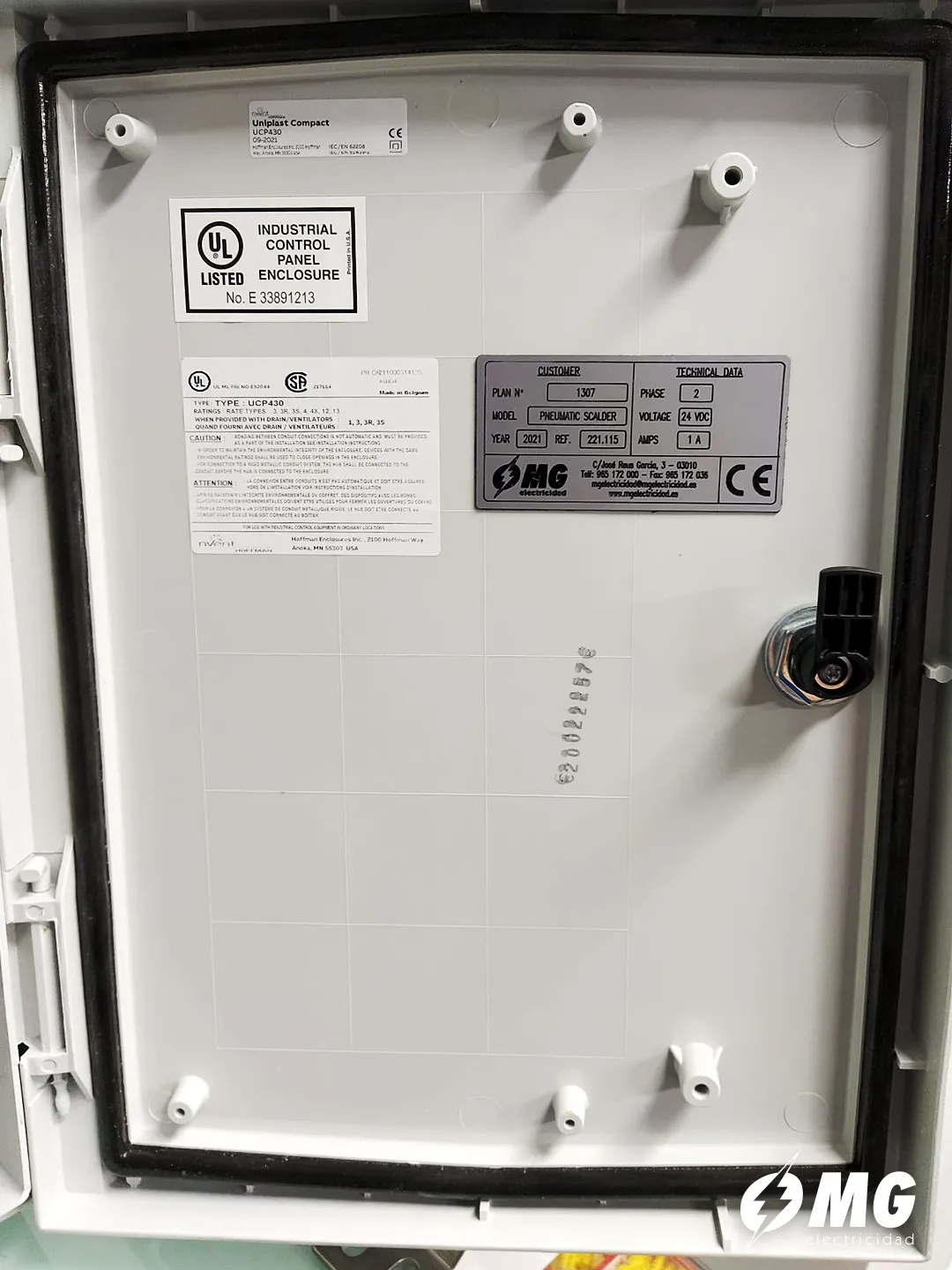

CE Mark Certification: To support international operations, every component and assembly phase meets the criteria for the CE mark, guaranteeing electrical safety and electromagnetic compatibility.
Conclusion: Efficiency and Reliability for your Production Line
In summary, this high-performance pneumatic electric control system for the “Texas” industrial scalder represents the perfect synergy between power and precision. By featuring IO-Link sensor integration, Siemens automation, and precise electropneumatic management, we provide a scalable solution for large-scale nut processing (5000kg/h) that guarantees maximum uptime and full CE işareti compliance for global food safety standards.
